Model
Specifications

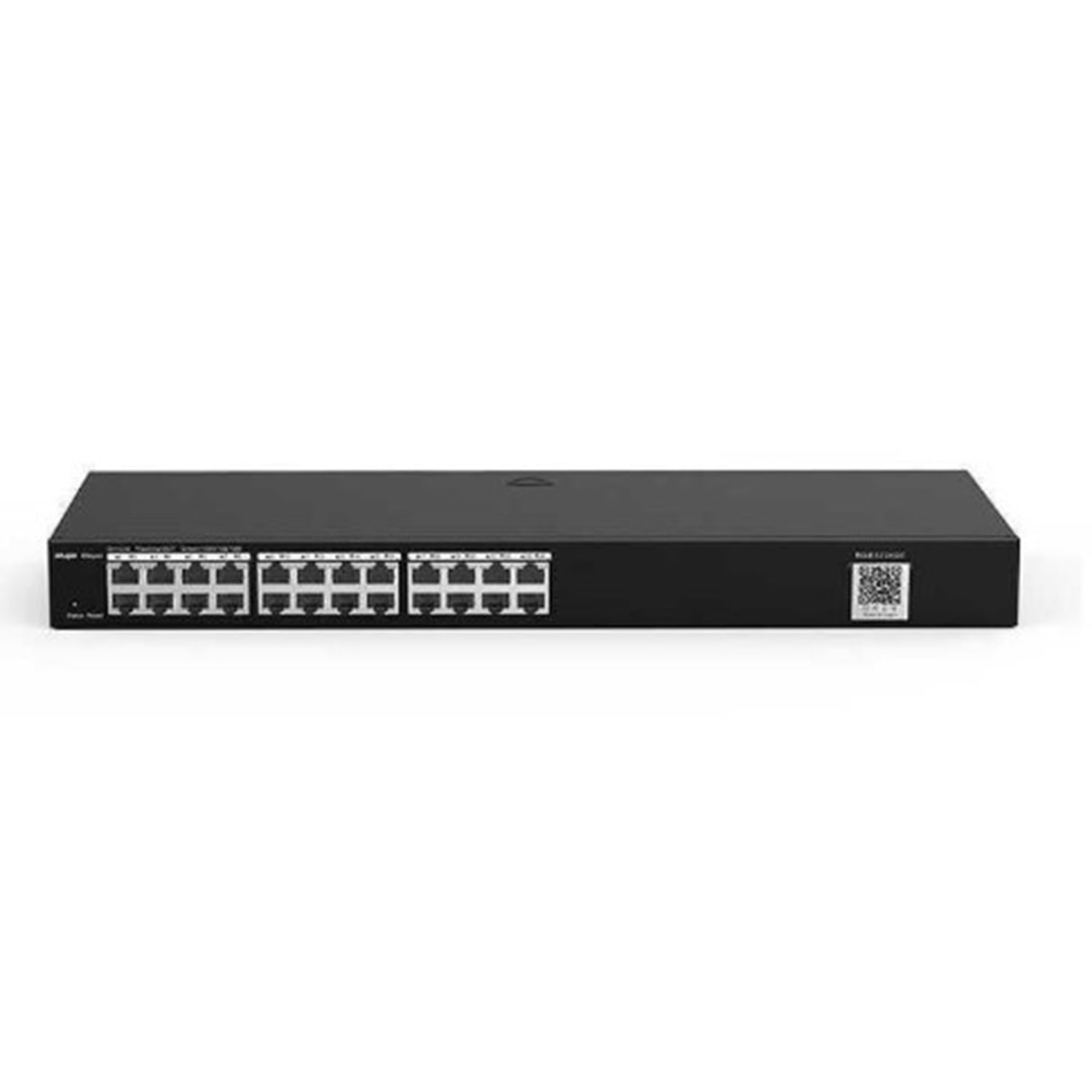

RG-ES224GC

Model
Specifications

RG-ES224GC

Hardware specifications

Ports

24 10/100/1000Base-T ports

Switching capacity

48Gbps

Package forwarding rate

36Mpps

Surge protection

Common mode: 6KV

Power consumption

<14W

Power supply

Built-in power supply

Dimensions (W x D x H)

440x165x44mm

MTBF

>200K

Operating environment

Operating temperature

0 to 50°C

Storage temperature

-40~70ºC

Operating humidity

10% to 90% RH

Storage humidity

5% to 95% RH

Software features

MAC capacity

8K

Static MAC address

16

VLAN

Support 802.1Q VLAN

Port management

Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration

Security

Support broadcast storm suppression, port speed limit, port isolation, DHCP Snooping

L2 features

Support port mirroring, loop protection, cable detection

Management

Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud
