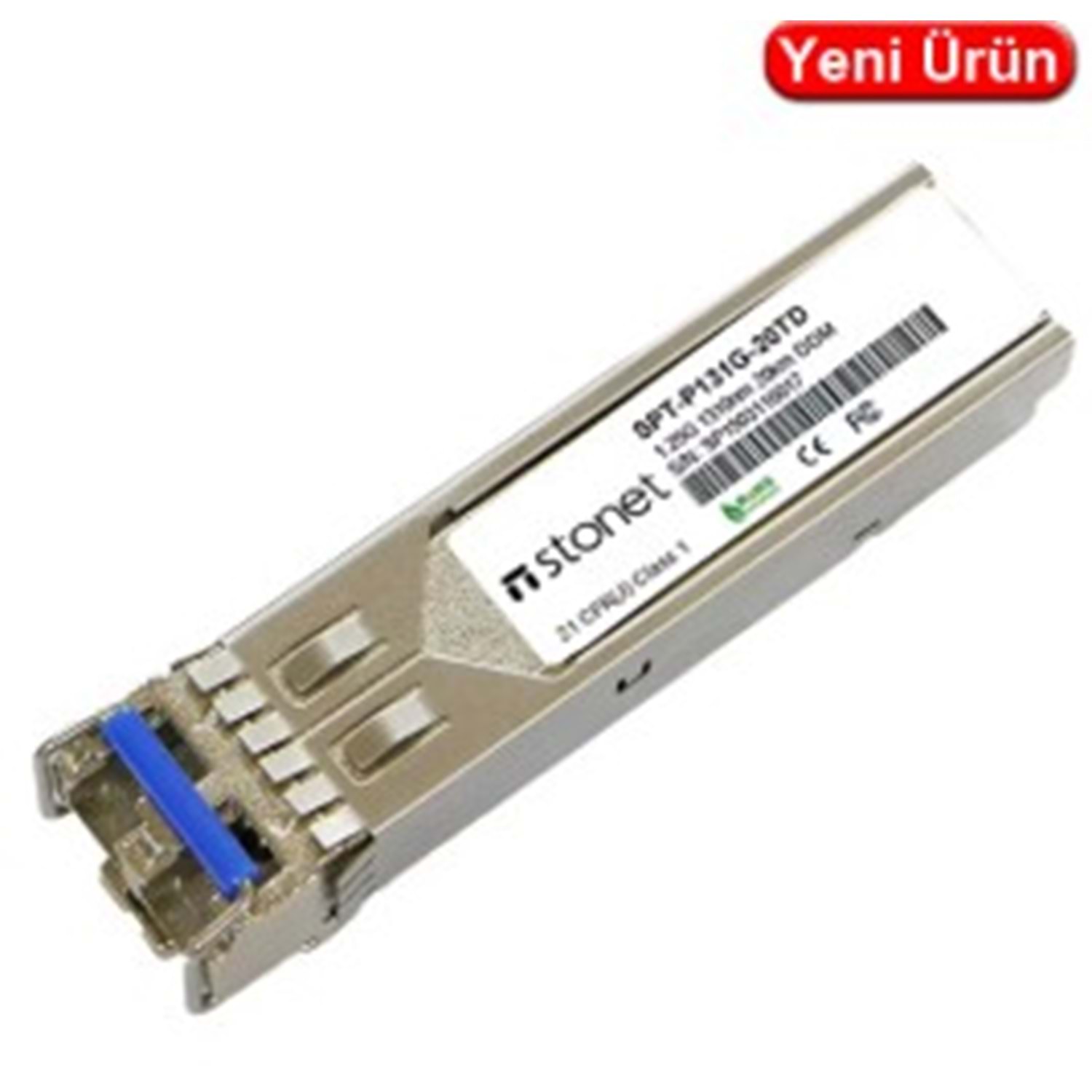

Stonet SPT-P131G-20TD 1GB SM 20KM Sfp Modül

1310nm 1.25Gbps 20km 0ºC ~ +70ºC DDM,Single-mode Duplex lc SFP Module Fiber Optic Transceiver

Product Description
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
Description of 1.25g sfp module
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features of 1.25g sfp module
? Dual data-rate of 1.25Gbps/1.063Gbps operation
? 1310nm FP laser and PIN photo detector for 20km transmission
? Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
? Digital Diagnostic Monitoring: Internal Calibration or External Calibration
? Compatible with SONET OC-24-LR-1
? Compatible with ROHS
? +3.3V single power supply
? Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
? Gigabit Ethernet
? Fiber Channel
? Switch to Switch interface
? Switched backplane applications
? Router/Server interface
? Other optical transmission systems
Specifications
Product NO.
SPT-P131G-20D
